TORRE LIBESKIND
MILAN, ITALY

Elevators installation, 2018-in progress

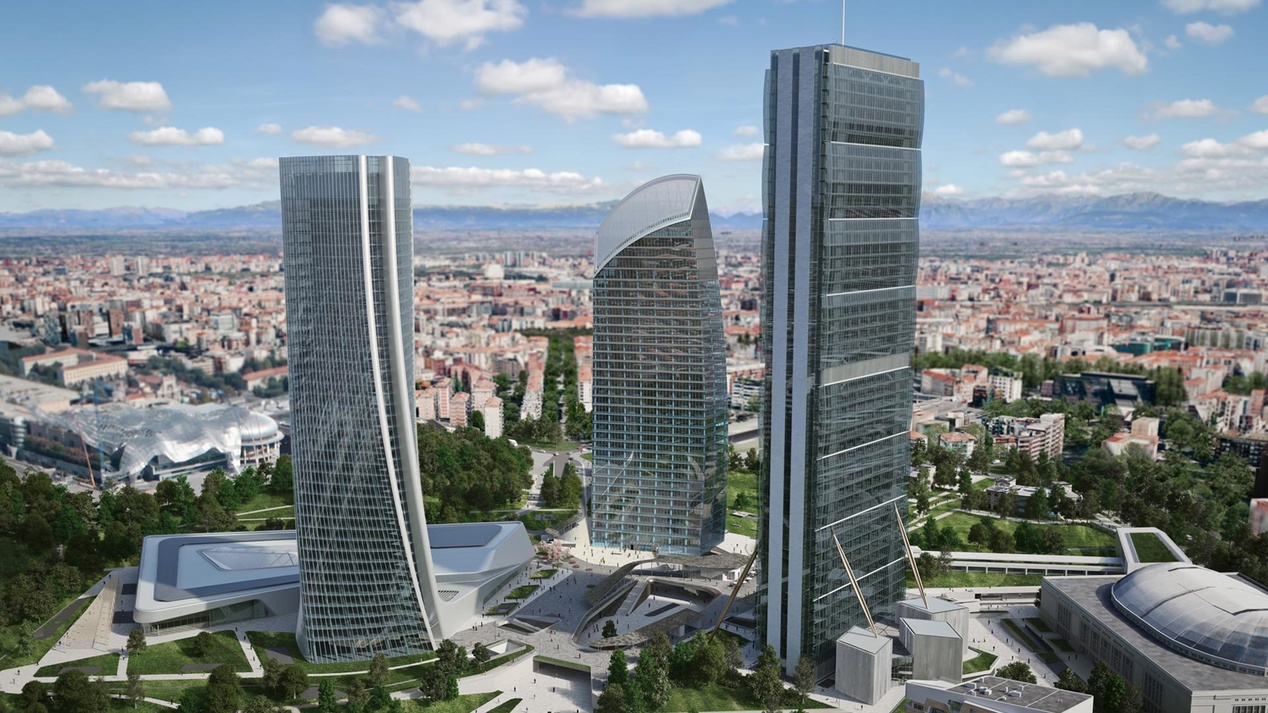

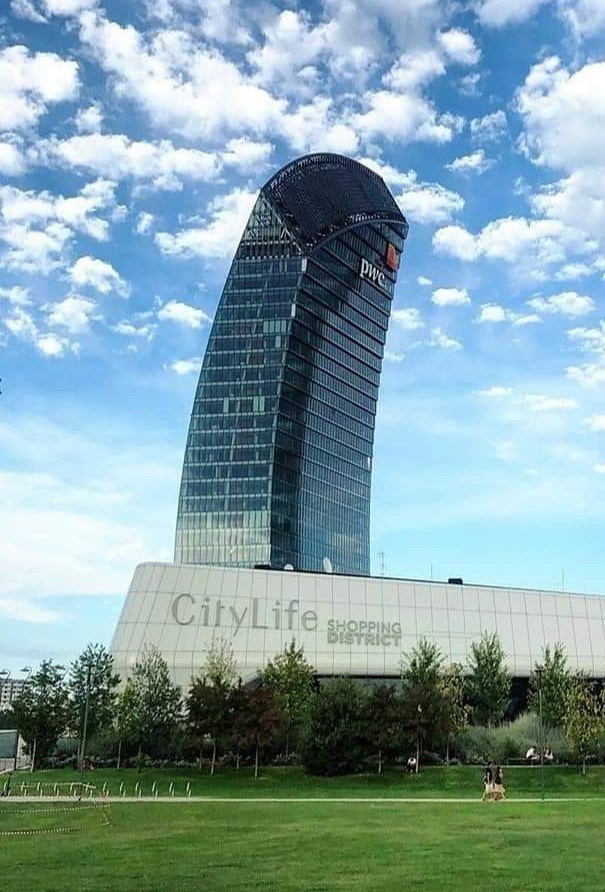

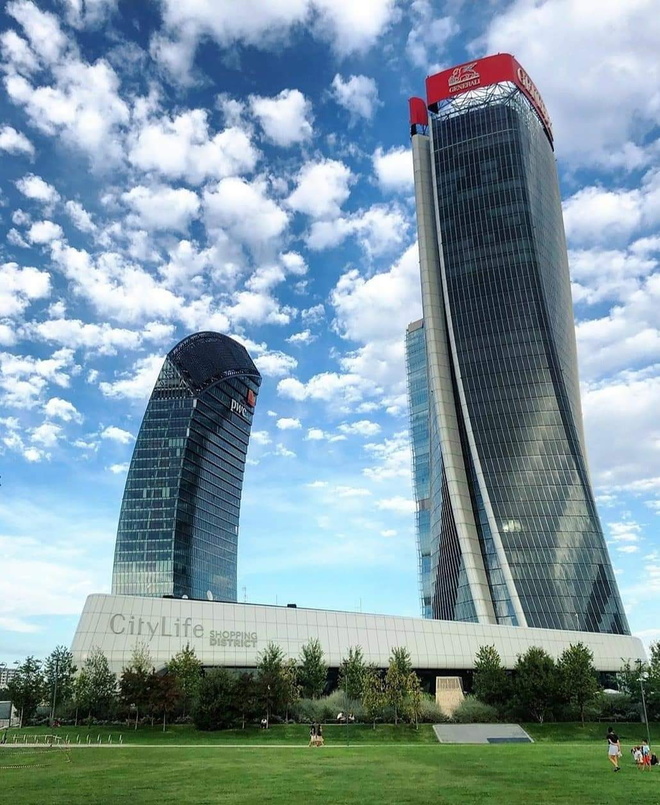

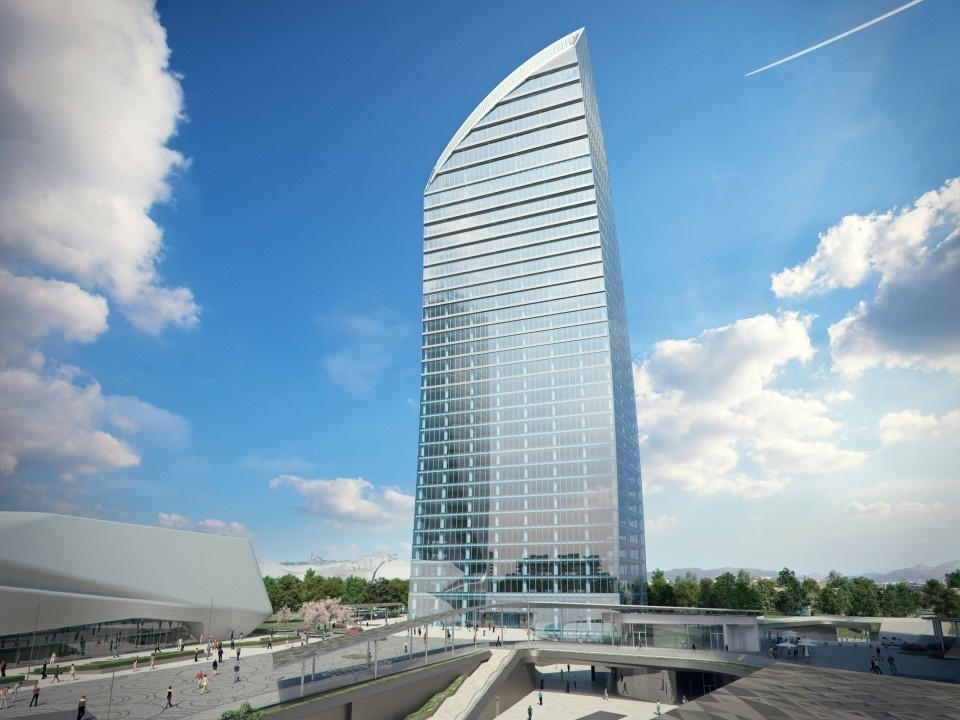

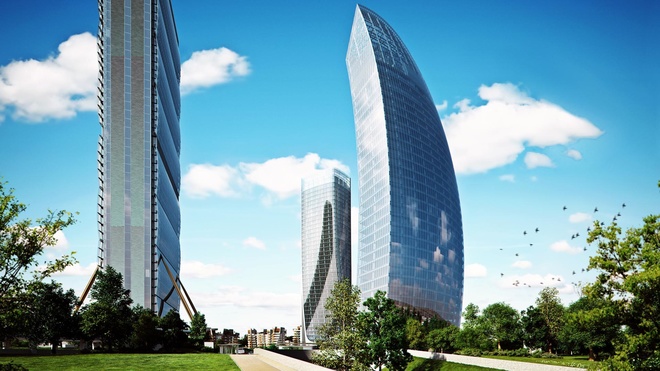

The return of Simplex to the Italian market with the new project of installing elevators in Libeskind Tower. It is a business skyscraper in Milan is 175 meters tall, with 28 floors and 76 000 square meters of floor space. Simplex is entrusted with the work of installing a total of 12 elevators with a range of 4 to 34 stations, one of which is a fire elevator with a total load capacity of 3000 kg. Libeskind Tower is the third skyscraper of the famous CityLife district in Milan, and work of the renowned architect Daniel Libeskinda, renowned for numerous projects around the world, and author of the master plan for the rebuilding of the World Trade Center in New York. The Renaissance dome is the foundation of the concept of a new Milanese business skyscraper, and will feature curved modern lines. The business building will be the Italian headquarters of PWC.

libeskindtower.it
libeskindtower.it
libeskindtower.it

12 elevators in total:

units type speed load capacity stations height
3 elevator 6 m/s 1800 kg 24 pers. 15 118.95 m
1 elevator 6 m/s 1800 kg 24 pers. 13 134.90 m
3 elevator 4 m/s 1800 kg 24 pers. 16 65.65 m
1 elevator 4 m/s 1800 kg 24 pers. 17 81.45 m
1 elevator 2.5 m/s 3000 kg 34 pers. 34 144.1 m
1 elevator 2.5 m/s 3000 kg 34 pers. 34 144.1 m
2 elevator 1 m/s 900 kg 4 pers. 4 15.8 m
